UYANG BELT Reinforced PU Round belts use aramid or polyester tensile cords to boost strength and minimize elongation. Ideal for long-distance, heavy-load, or full-load start-up use, they ensure stable, precise transmission—perfect for logistics, mining, and automation lines.
Key Advantages:
Tensile Resistance: Corded structure ensures minimal elongation, eliminating the need for frequent re-tensioning after installation
High Load Capacity: Ideal for long-distance transmission (center distance >5m), heavy-load conveying (single-point load >10kg), and full-load start-up conditions
Operational Stability: Maintains transmission precision by preventing belt slack during operation
Typical Applications:
Perfect for high-reliability transmission systems such as logistics sorting lines, mining conveyor equipment, and automated production lines.

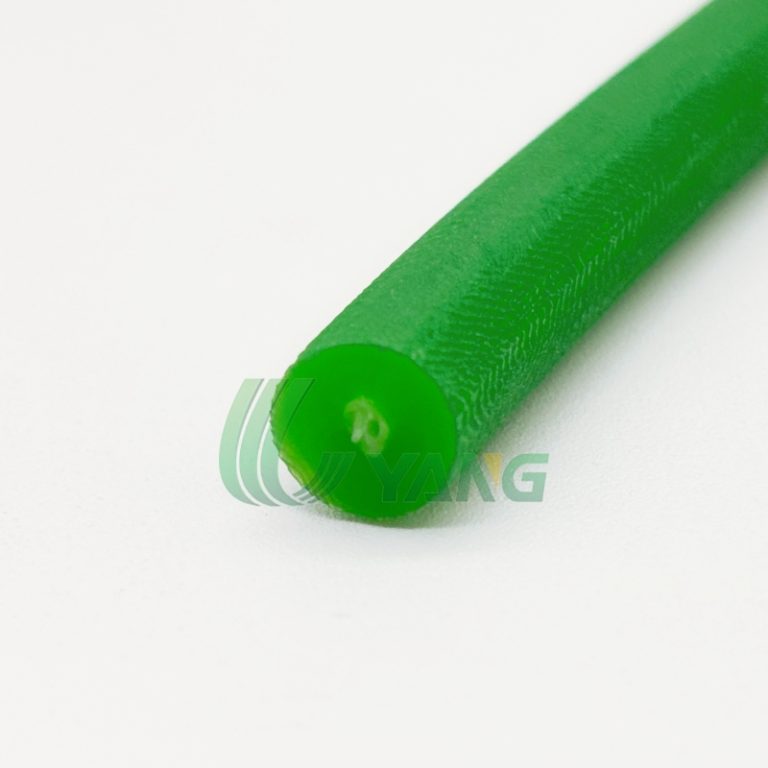

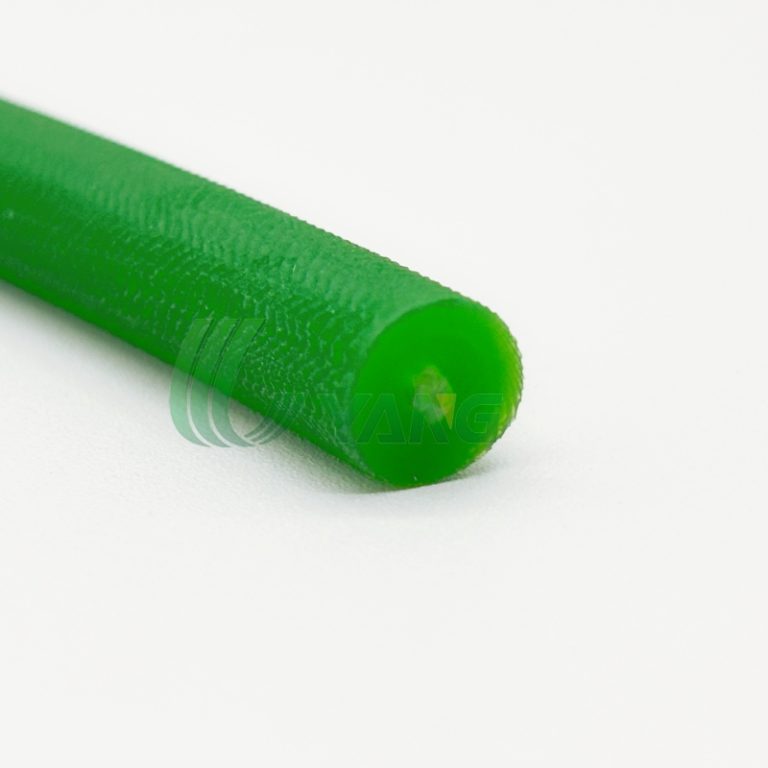

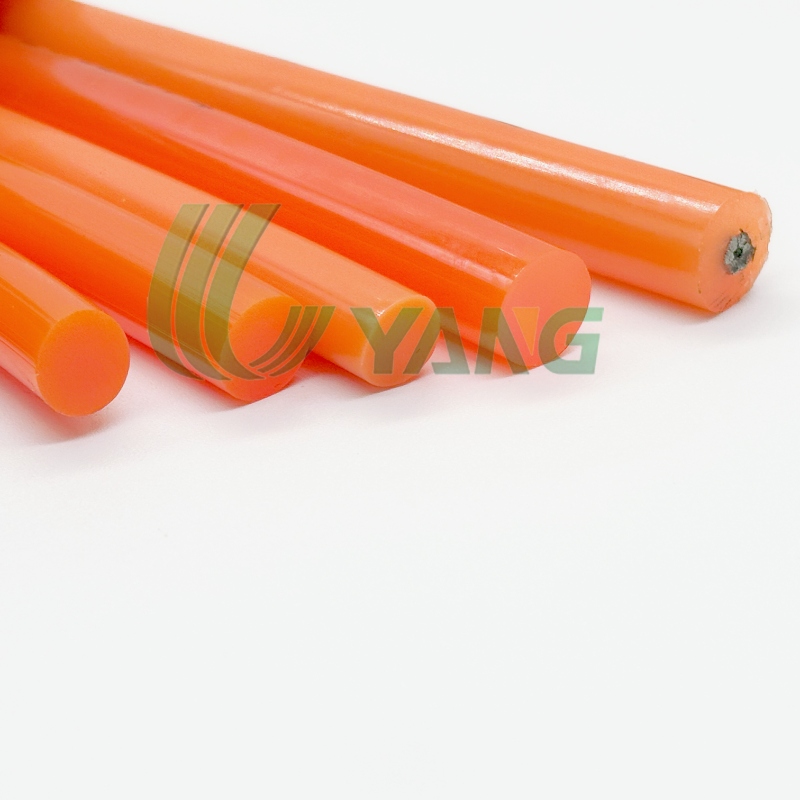

High-Strength Core Layer: Uses aramid fiber (for PU belts) or polyester fiber (for TPE belts) as the tensile carrier.
Elastic Coating Layer: High-quality polyurethane or thermoplastic elastomer provides excellent wear resistance and flexibility.
Surface Options: Glossy or matte finishes available to meet different friction requirements.
300% Improvement in tensile deformation resistance vs standard round belts
<1% elongation under rated load, ensuring stable operation
Patented bonding technology between core and outer layer eliminates delamination risk
| Feature | Standard Round Belt | Reinforced Round Belt | Benefit |
|---|---|---|---|
| Tensile Strength | Medium | Ultra-high (up to 2000N) | 2–3x load capacity |
| Long-Term Elongation | 3–5% | <1% | Less frequent tension adjustments |
| Dynamic Bending Life | 500,000 cycles | 1,000,000+ cycles | Double service life |
| Min. Bending Radius | 30mm | 15mm | Suitable for compact systems |
Mining conveyor lines (continuous load >50kg/m)
Automated warehousing and sorting lines
Heavy parts handling in automotive assembly
Cross-factory transmission with center distance >10m
Agricultural machinery power transmission
Oil drilling platform equipment drive systems
High-frequency accumulation conveyors (start-up current reduced by 40%)
High-temperature workshops (special model up to 120°C)
Humid and corrosive environments (rustproof core + hydrolysis-resistant PU)
Double-helix core design to eliminate torque twist
Conductive/anti-static cores for the electronics industry
Metal-detectable cores (FDA-compliant for the food industry)
Food-grade TPU coating (FDA certified)
Grooved/textured surfaces for enhanced grip
Oil-resistant coatings (ideal for automotive maintenance)
Thermal Welding: Seamless permanent connection
Mechanical Fasteners: For quick disassembly
Cold Welding Technology: No special equipment required
Recommended use of reinforced belts when:
✓ Transmission length >5m
✓ Single-point load >10kg
✓ >100 starts/stops per day
✓ Temperature fluctuation >50°C
Maintenance Tips:
Recheck belt tension after the first 24 hours of operation
Inspect core exposure every 3 months
Avoid contact with sharp edges
| Specification | PU Reinforced | Polyester Reinforced | Special Reinforced |
|---|---|---|---|
| Tensile Strength | 800N | 1200N | 2000N |
| Temperature Range | -30~80°C | -40~100°C | -50~120°C |
| Oil Resistance | ★★★★ | ★★★ | ★★★★★ |
| Min. Pulley Diameter | 20mm | 25mm | 15mm |
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
