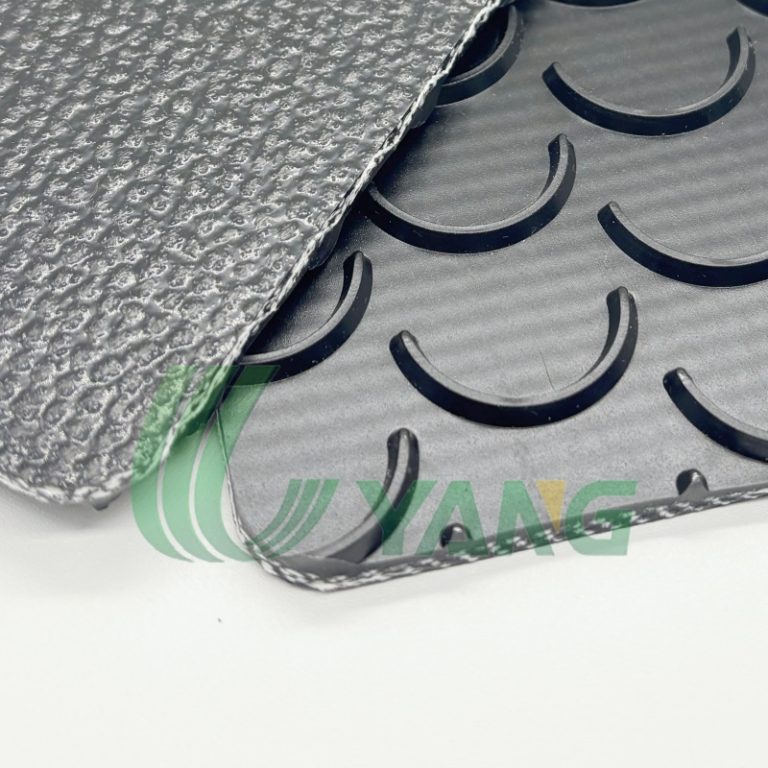

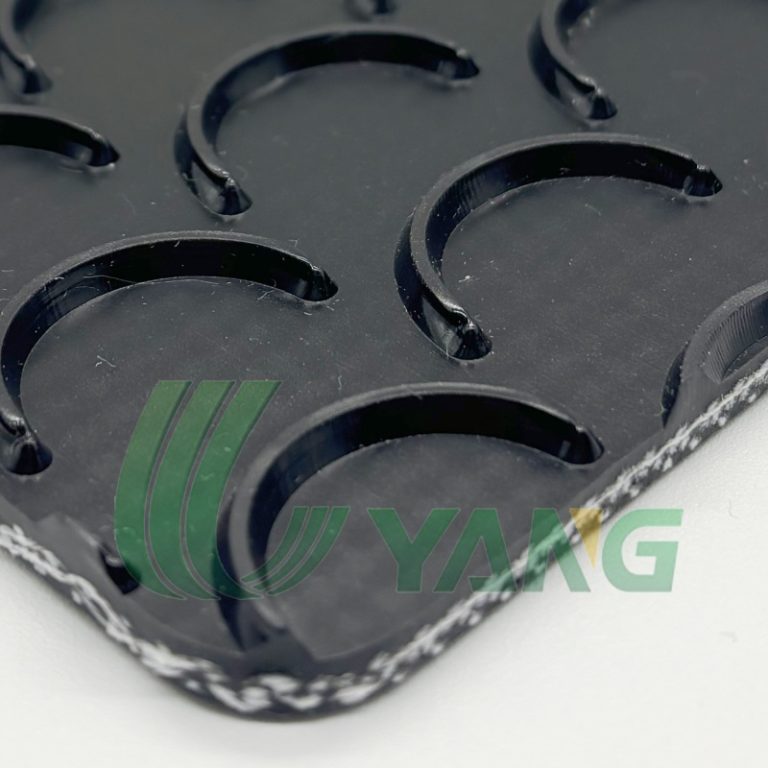

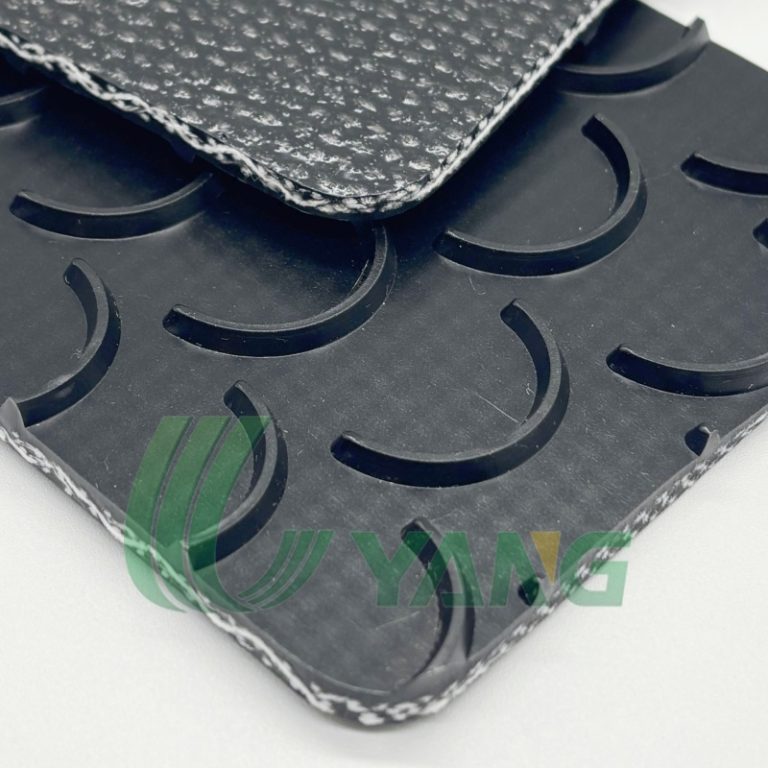

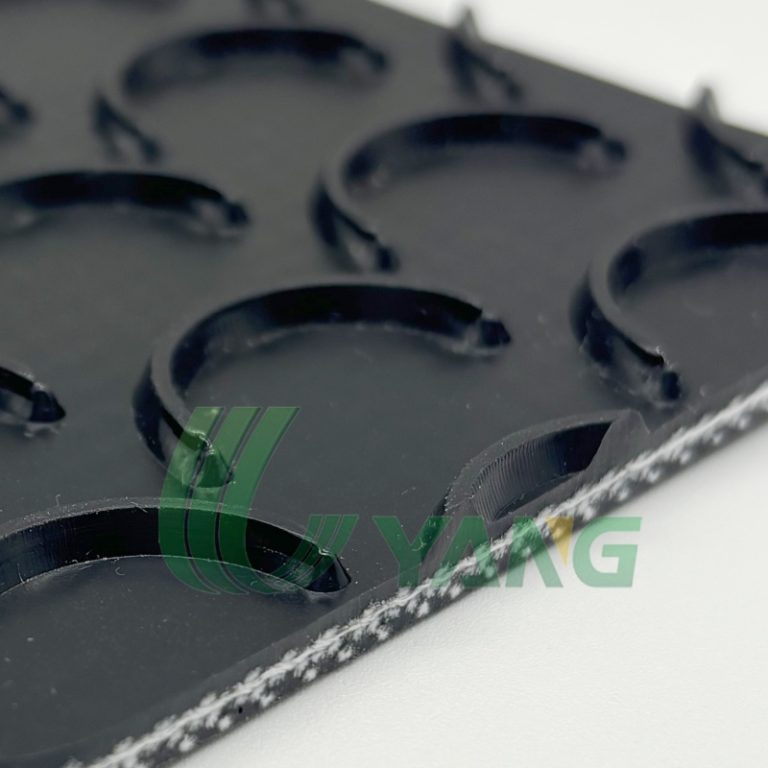

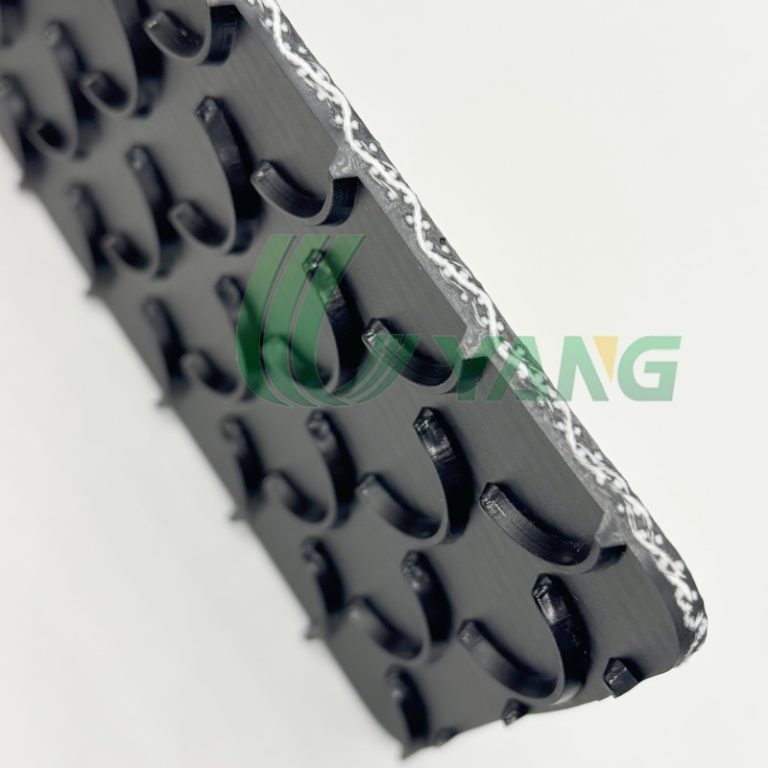

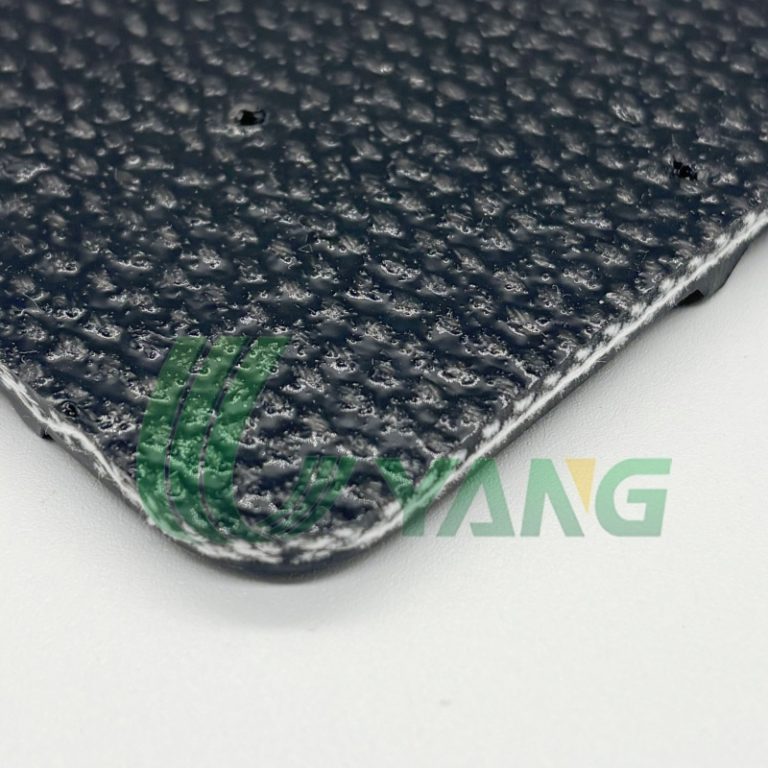

Our Crescent Top Solid Woven PVC conveyor belt is designed for high-incline conveying, featuring an aggressive scoop pattern that forms small “buckets” to carry both solids and liquids. When run in reverse, the upside-down crescents effectively drain liquids while conveying dry materials.
This belt operates smoothly and quietly, ensuring reliable performance in tubeveyor systems and various material handling applications.
Our Crescent Top Solid Woven PVC conveyor belt is designed for high-incline conveying, featuring an aggressive scoop pattern that forms small “buckets” to carry both solids and liquids. When run in reverse, the upside-down crescents effectively drain liquids while conveying dry materials.
This belt operates smoothly and quietly, ensuring reliable performance in tubeveyor systems and various material handling applications.
HARDNESS°SHA : 65
1% ELONGATION STRENGTH: 18N/MM
ROLLER DIAMETER MIN: 80MM
BELT THICKNESS：6.5MM
BELT WEIGHT: 5.5KG/M²
WIDTH MAX: 3400MM
TEMPERATURE: -20/+80
Customized requirement:
1. The parameters mentioned above are approximate, and the final parameters may vary depending on on-site conditions. For example, if the joints of the belt are well-made, the Counter flexion can be reduced significantly.
2. Thickness, Pattern, color, and all characteristics could be customized as clients’ needs;
BELT CONSTRUCTION
| TOP COVER MATERIAL: | PVC |
| SURFACE FINISH: | Crescent |
| PROPERTY: | |
| COLOR: | Black |
| BOTTOM COVER MATERIAL: | Interwoven Fabric |
| SURFACE FINISH: | Brushed |
| COLOR: | Black |
| TOP PLY: | UNIPLY INTERWOVEN |
| INNER PLIES: | |
| BOTTOM PLY: | |
| TOTAL NO. OF PLIES: | 1 |
BELT Application:
Bulk Product Conveying, Fruits, General Conveying, Horticultural, Incline, Industrial, Material Handling, Packaging, Recycling, Turn Applications, Troughed Applications, Vegetable Oil, Vegetable Products;
When choosing PVC conveyor belts, it is advisable to communicate detailed production processes and specific needs with the supplier to customize the most suitable conveyor belt solution.
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
