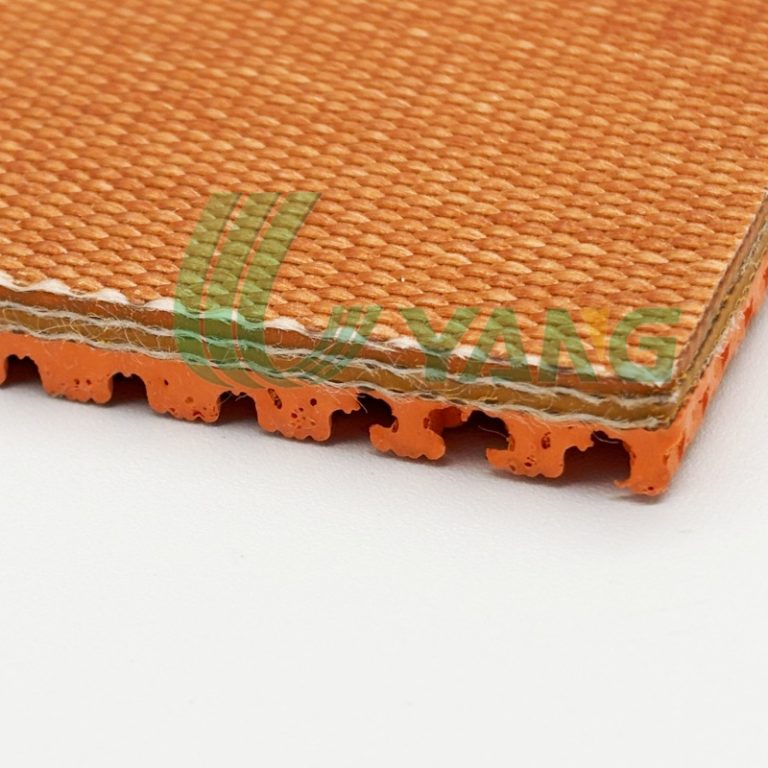

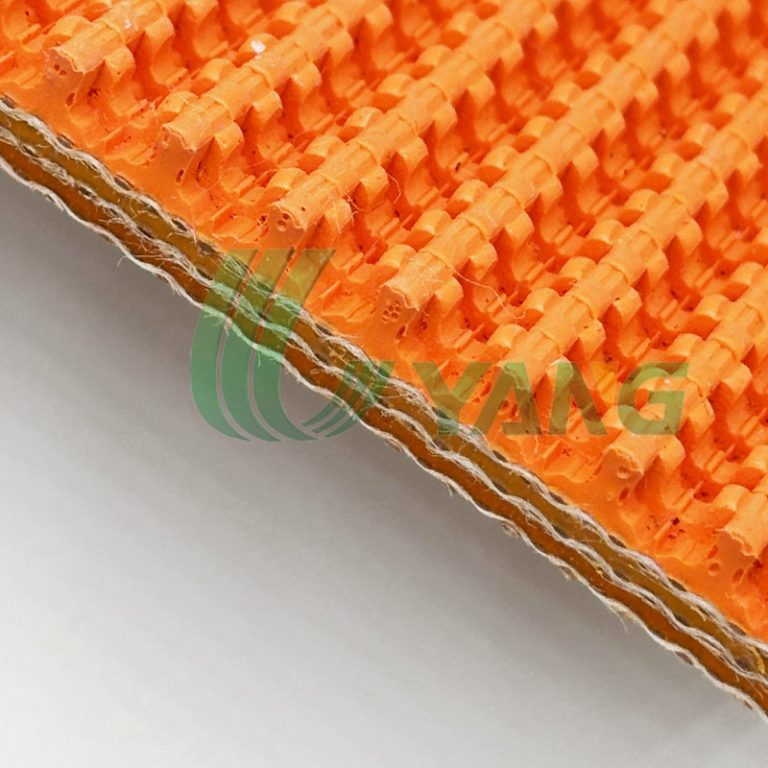

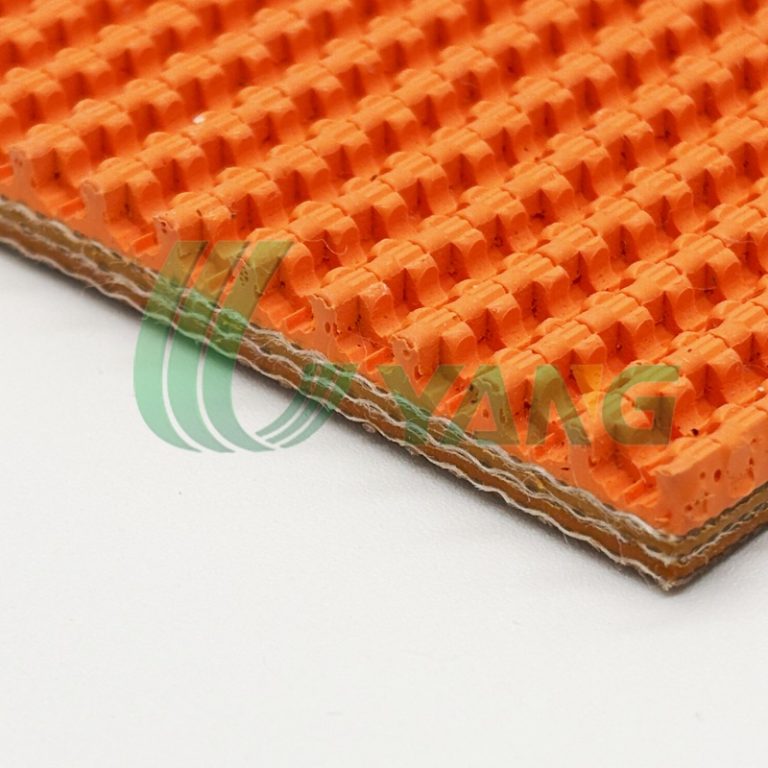

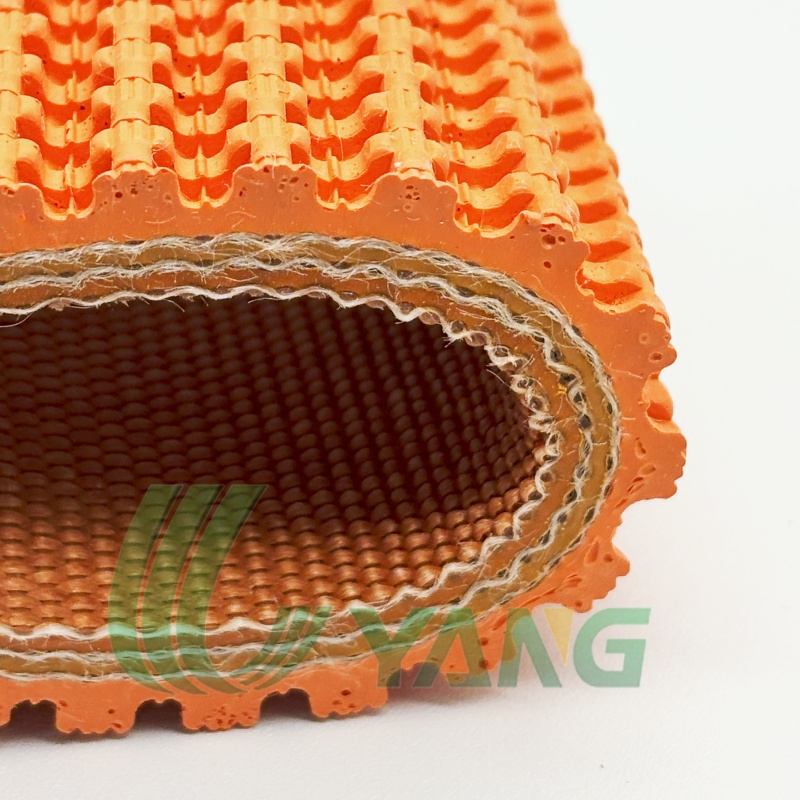

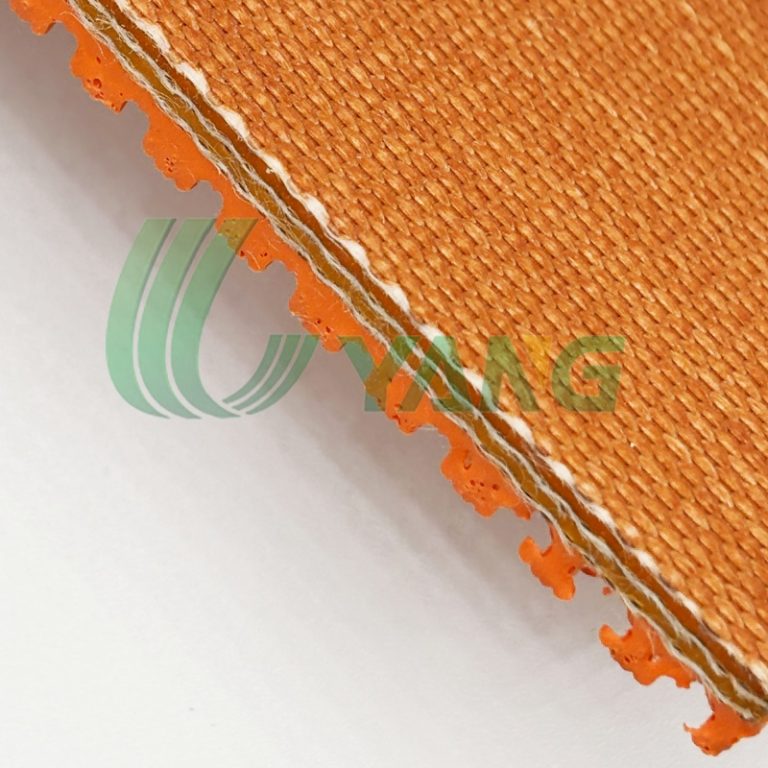

UYANG BELTING Yellow Carbox Nitrile Roughtop Conveyor Belt is produced with superior wear resistance and long service life, which is a good alternative to standard rubber Roughtop belts. This belt could ensure stable and durable performance, especially in applications involving carton and cardboard handling.
The nitrile top cover offers enhanced grip, oil resistance, and abrasion protection, while the rough top texture maintains consistent material control on inclined or high-friction conveyors.
UYANG BELTING Yellow Carbox Nitrile Roughtop Conveyor Belt is produced with superior wear resistance and long service life, which is a good alternative to standard rubber Roughtop belts. This belt could ensure stable and durable performance, especially in applications involving carton and cardboard handling.
The nitrile top cover offers enhanced grip, oil resistance, and abrasion protection, while the rough top texture maintains consistent material control on inclined or high-friction conveyors.
✅ High-Visibility Yellow Surface
✅ Enhanced Grip with Diamond Texture: anti-slip performance
✅ Natural Rubber Composition: shock absorption, wear resistance, and a quiet conveying process.
✅ Multi-Ply Reinforcement: low stretch, dimensional stability, and long service life.
✅ Versatile Compatibility
| Item | Specification |
|---|---|
| Top Cover Compound | Yellow Nitrile |
| Top Cover Color | yello |
| Top Cover Thickness | 1/8 in. (3.30 mm) |
| Top Cover Description | Roughtop |
| Bottom Cover Compound | Bare RFL |
| Bottom Cover Thickness | 0.00 in. (0.00 mm) |
| Bottom Cover Description | Bare |
| Number of Plies | 3 |
| Overall Gauge | 19/64 in. (7.54 mm) |
| Unit Weight | 0.1150 lbs/PIW |
| Carcass Type | Polyester |
| Compound Type | Yellow Nitrile |
| Temperature Range (High) | 250 °F (121 °C) |
| Temperature Range (Low) | 0 °F (-18 °C) |
Ideal for light-to-medium duty applications in:
Agriculture – Hay, straw, corn stalk baling and transport
Recycling – Conveying and compressing waste paper, plastics, scrap metals
Industrial & Logistics – Package handling, sorting lines, material transfer
Manufacturing – Especially where visual identification of belts is needed for safety or workflow tracking
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
