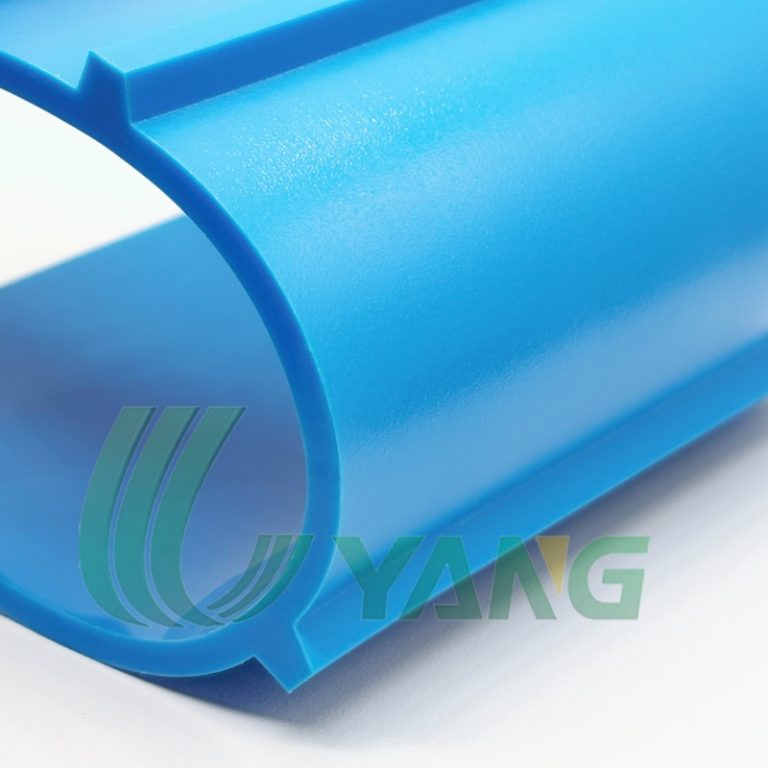

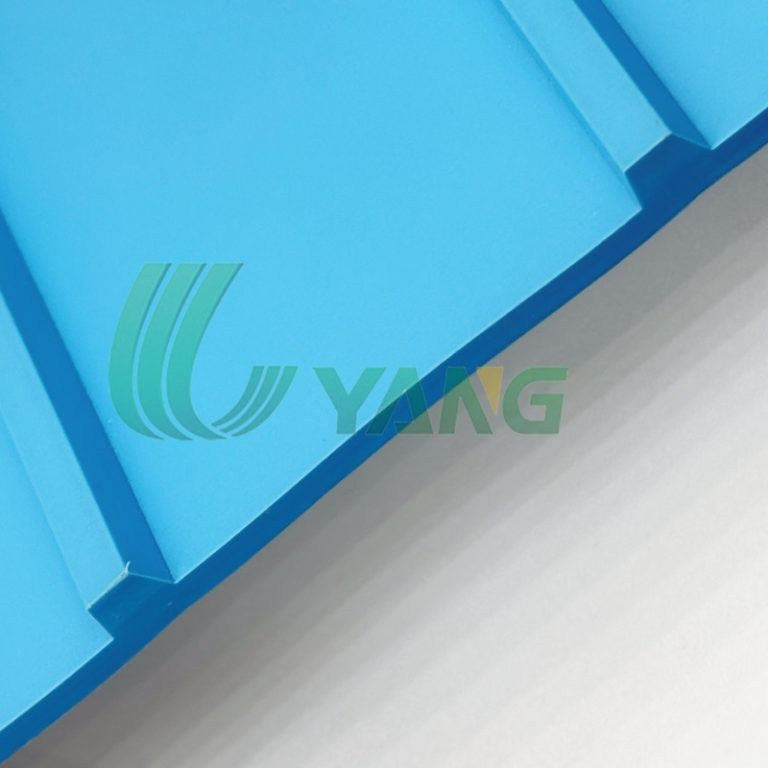

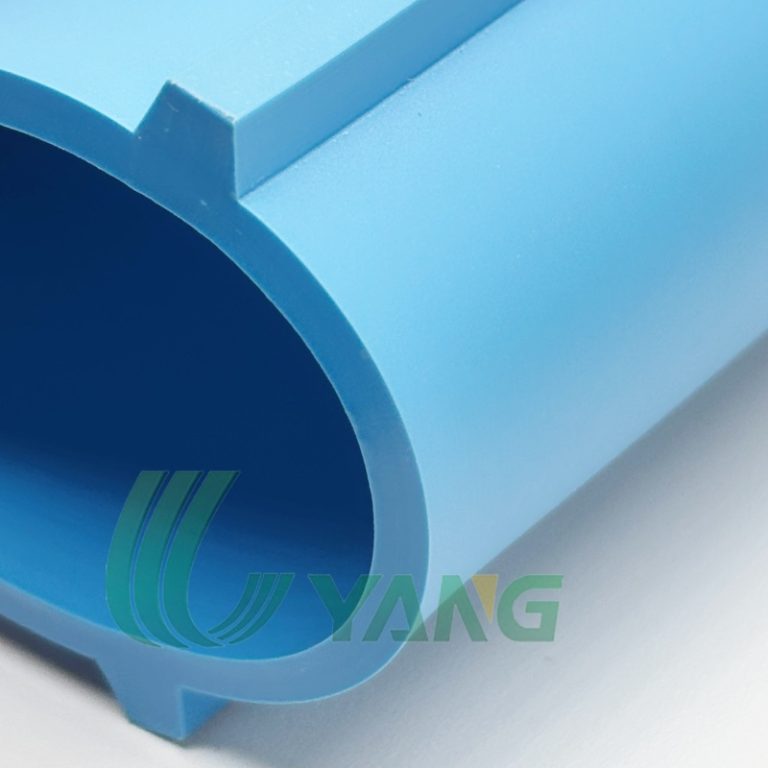

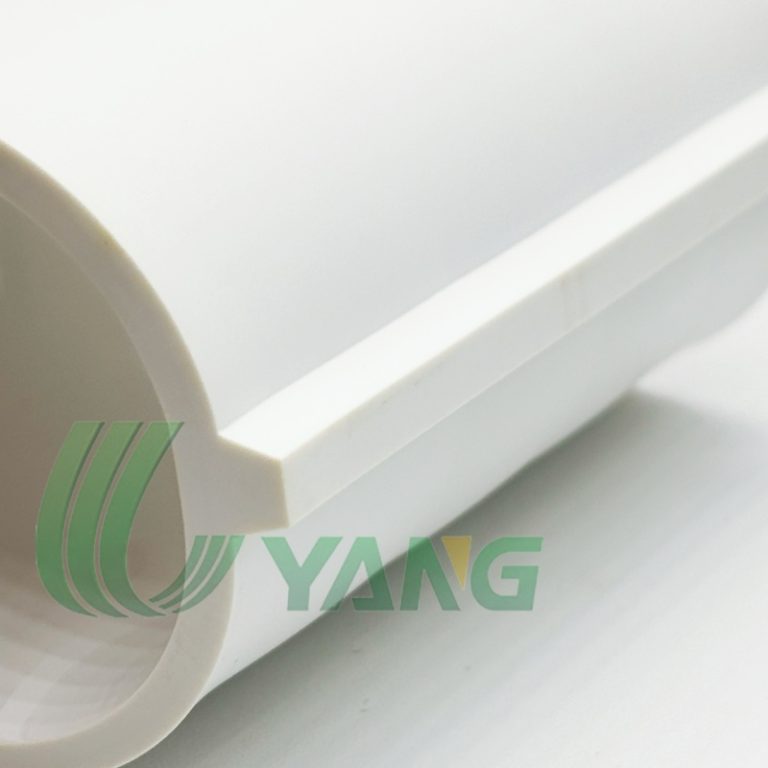

UYANG BELTING provides customized easy-to-clean Positive Drive Homogeneous Belt, which could be used in food processing, expecially Raw meat processing, Fresh fruits & vegetables, Frozen food, Fried food. We could provide the homogeneous belt with 25.4 pitch, 50.4 pitch, 39.7 pitch; smooth surface , golf surface, Horizontal bar surface, glossy surface , Matte surface; and the thickness, pattern, pitch, width, length could be customized; Meanwhile we could provide Sidewall, Guide, Cleats which are used for Homogeneous belt;
UYANG BELTING provides customized easy-to-clean Positive Drive Homogeneous Belt, which could be used in food processing, expecially Raw meat processing, Fresh fruits & vegetables, Frozen food, Fried food. We could provide the homogeneous belt with 25.4 pitch, 50.4 pitch, 39.7 pitch; smooth surface , golf surface, Horizontal bar surface, glossy surface , Matte surface; and the thickness, pattern, pitch, width, length could be customized; Meanwhile we could provide Sidewall, Guide, Cleats which are used for Homogeneous belt;
UYANG BELTING easy-to-clean homogeneous belts can effectively inhibit bacterial growth, avoid product contamination during transportation. and provide customers with a safe and healthy operating environment;
Selection reference:
The k50 series is an upgrade of the k25 series, which has a stronger load capacity and is suitable for heavy wheel load.
Code |
color |
Material |
Hardness |
Antibacterial class |
Thickness(mm) |
Depth of tooth(mm) |
Maximumload(kg/m2) |
Working temperature(°C) |
Surface design |
Pitch(mm) |
Minimumroll diameter(mm) |
| S50-U30 | Blue | TPU | 50D | Grade one | 3.0 | 4 | 110 | -5/+80 | glossy | 50.4 | 126 |
| S50-W30 | White | TPU | 50D | Grade one | 3.0 | 4 | 110 | -5/+80 | glossy | 50.4 | 126 |
| S50-U30Y | Blue | TPU | 90A | Grade one | 3.0 | 4 | 220 | -5/+80 | glossy | 50.4 | 126 |
| S50-W30Y | White | TPU | 90A | Grade one | 3.0 | 4 | 220 | -5/+80 | glossy | 50.4 | 126 |
| S50-U46Y | Blue | TPU | 90A | Grade one | 4.6 | 4 | 240 | -5/+80 | glossy | 50.4 | 126 |
| S50-U30Y/G | Blue | TPU | 90A | Grade one | 3.0 | 4 | 220 | -5/+80 | golf | 50.4 | 126 |
| H50-DU30 | Dark Blue | TPU | 50D | Grade Zero | 3.0 | 4 | 110 | -20/+60 | glossy | 50.4 | 126 |
| H50-MW30 | Milk White | TPU | 50D | Grade Zero | 3.0 | 4 | 110 | -20/+60 | glossy | 50.4 | 126 |
| H50-DU30Y | Dark Blue | TPU | 90A | Grade Zero | 3.0 | 4 | 220 | -20/+60 | glossy | 50.4 | 126 |
| H50-MW30Y | Milk White | TPU | 90A | Grade Zero | 3.0 | 4 | 220 | -20/+60 | glossy | 50.4 | 126 |
| Category | Model | Number | Outside
diameter (mm) |
thickness
(mm) |
Material | Bore
Shape |
Bore Specification | Schematic |
| Action
wheel |
C50-8E | 8 | 126.4 | 30 | POM/PA/PE | Square hole | 40mm |  |
| Circular hole | 25-35mm | |||||||
| Action
wheel |
C50-10E | 10 | 158 | 30 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm | |||||||
| Action
wheel |
C50-12E | 12 | 189.6 | 30 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm |
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
