UYANG BELTING’s TPU Elastic Belt, with a Longitudinal rib pattern, is designed for the logistics industry. It offers flame resistance, With its high elasticity, wear resistance, and chemical resistance, it’s ideal choice for Logistics industry , could be suitable for high-intensity transport and meets industry safety standards
UYANG BELTING’s TPU Elastic Belt, with a Longitudinal rib pattern, is designed for the logistics industry. It offers flame resistance, With its high elasticity, wear resistance, and chemical resistance, it’s ideal choice for Logistics industry , could be suitable for high-intensity transport and meets industry safety standards

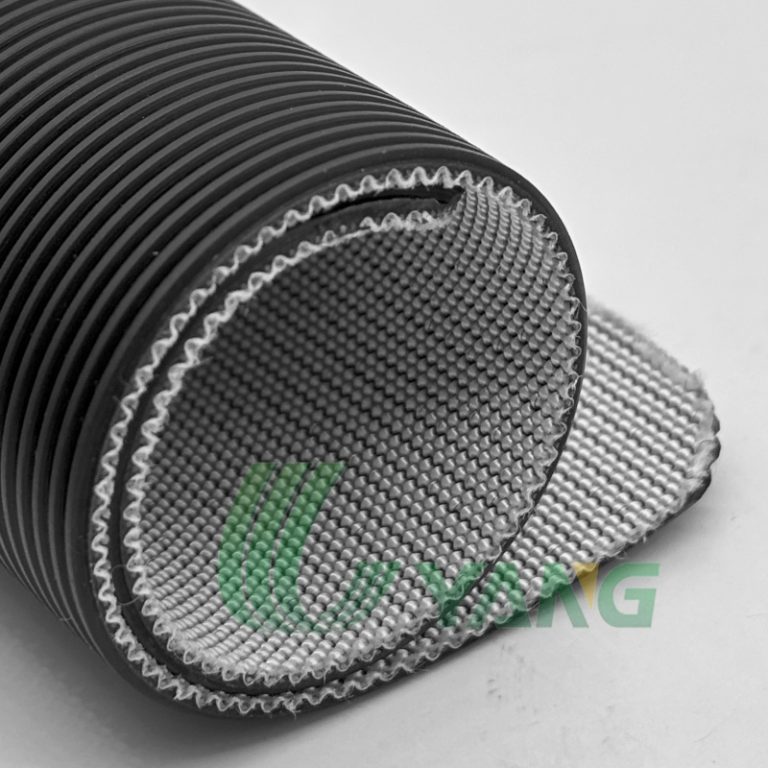

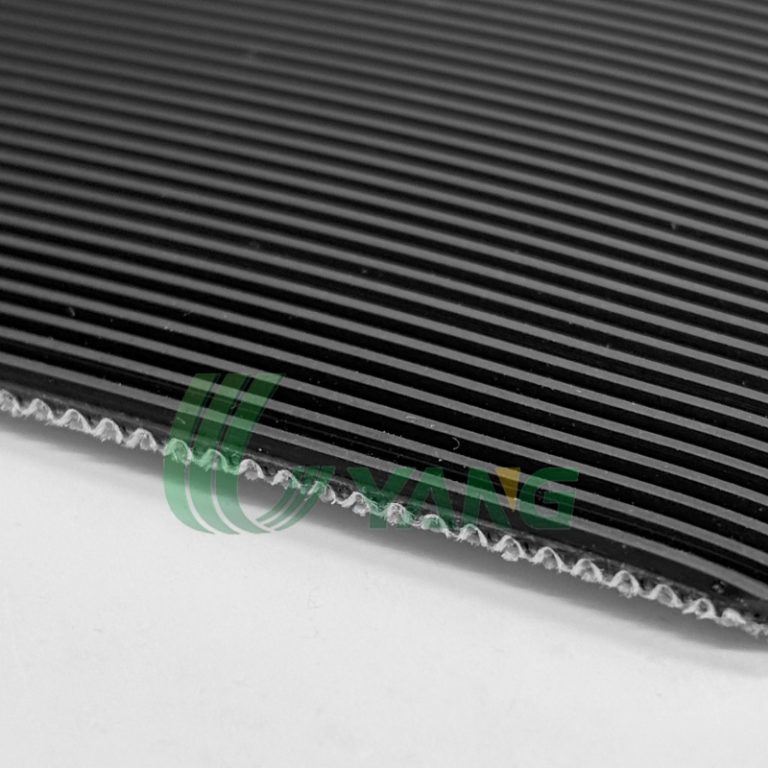

TPU conveyor belts, with a longitudinal rib pattern, could improve overall stability surface wear resistance, and longer life.
Elastic belt for the logistics industry.
Flame Resistance;
Strong Stability.
Wear resistance and Impact resistance.
Puncture-resistance.
Low Noise.
weather resistance
| Top cover Material | TPU |
| Top cover Thickness | 0.7 mm |
| Features | flame resistance; Elastic; |
| Color | Black |
| Surface | Longitudinal rib pattern; |
| Bottom Cover Material | Reinforcement Fabrics |
| Bottom Cover Thickness | 0.5mm |
| Surface | Reinforcement Fabrics |
| Color | —— |
Technical data:
| Total Thickness | 2.3 mm |
| Belt Weight: | 2.8 KG/M² |
| Fabric Plies | 1 ply |
| HARDNESS °ShoreA : | 70 ShoreA |
| 1% ELONGATION STRENGTH: | 12 N/MM |
| TEMPERATURE: | -15/+80 |
Min Roll Diameter
| Normal Flexion (mm) | 30mm |
| Counter Flexion (mm) | 30mm |
Main industry segments:
Logistics;
Applications:
Induction, Merger conveying, weigher.
Colors, Thickness, Plies, Patterns, Fabrics, width, and length, could be customized;
| Product Code | Color | Surface | Material | Thick
ness mm |
Tension for 1% elongation (N/mm) |
Minimum diameter of pully (mm) | Temp (℃) |
Application |
| U22-34/33PDA | black | Rough matt | TPU | 2.6 | 14 | 70 | -20/+80 | General conveying belt, scratch resistance. |
| U32-34/0PD | black | Matt | TPU | 3.3 | 18 | 80 | -15/+80 | Smooth surface |
| U2-3/19RDA | black | Longitudinal rib | TPU | 2.2 | 12 | 30 | -20/+80 | Induction/Merger conveying, Weigher |
| UU11(28-0)-N | black | Matt/fabric | Elastic belt | 1.1 | 8 | 10 | -20/+60 | Roler line,anti-meandering |
| P25-44/1RBZA | Gray | Diamond | PVC | 2.0 | 6 | 20 | -20/60 | Induction/Merger conveying.cross sorter |
| S18/1Z | Black | Diamond | PVC | 2.0 | 6 | 40 | -15/+80 | Induction/Merger conveying.cross sorter |
| P25-34/19ROD | black | Longitudinal rib | PVC | 2.4 | 10 | 50 | -20/+60 | Inclined Conveying, Induction/Merger conveying |
| P21-34/0H | black | Matt | PVC | 2.5 | 12 | 40 | -15/+80 | Curve conveyor belt |
| P21-34.48LZA | black | Mini Grip fabric | PVC | 2.8 | 12 | 40 | -30/+80 | Curve conveyor belt, low temperature resistance,high friction |
| P25-35/0D | black | Matt | PVC | 3.0 | 12 | 60 | -15/+80 | General conveying belt |
| P22-36/19ROD | black | Longitudinal rib | PVC | 3.1 | 12 | 60 | -20/+60 | Inclined conveying belt |
| P22-38/54LRDA | Black | Wavy super nipple | PVC | 4.0 | 10 | 50 | -30/+60 | Inclined conveying belt |
| P22-36/90 | black | Mini grip fabric | PVC | 5.3 | 12 | 60 | -20/+60 | Inclined conveying belt |
| P20-37DAI | Black | Impregnated fabric | Impregnated belt | 3.5 | 15 | 60 | -15/+80 | Telescopic belt |
| P100-37 | black | Impregnated fabric | Impregnated belt | 3.0 | 14 | 60 | -10/+80 | Inclined conveying belt, Puncture-resistant, Impact resistance; |
| P120-38/19i | black | Longitudinal rib | Impregnated belt | 3.5 | 21 | 80 | -15/+80 | Inclined conveying belt, Puncture-resistant. |
| P125-37 | black | Impergnated fabric | Impregnated belt | 3.5 | 21 | 80 | -10/+80 | Inclined conveying belt, Puncture-resistant, Impact resistance; |
| U125-34/33 | black | Rough matt | Impregnated belt | 3.5 | 21 | 80 | -10/+80 | Merger belt below the chute, puncture-resistant, impact resistance |
| P150-37 | black | Impergnated fabric | Impregnated belt | 4.0 | 25 | 100 | -10/+80 | General conveying belt, puncture-resistant, impact resistance |
| M100-37 | black | Impergnated fabric | Felt belt | 3.5 | 12 | 70 | -20/+80 | Merger belt below the chute, puncture-resistant, impact resistance |
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
