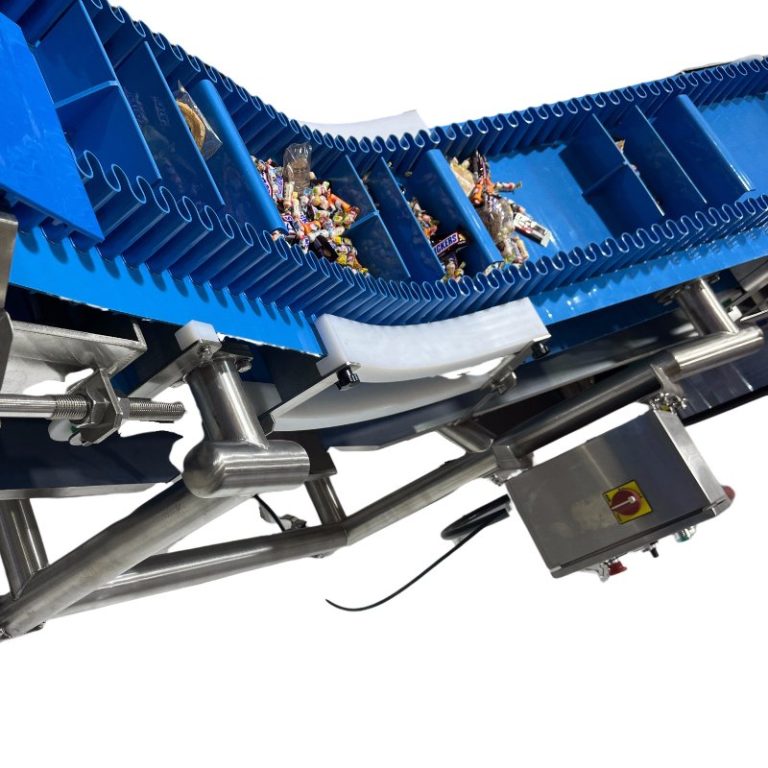

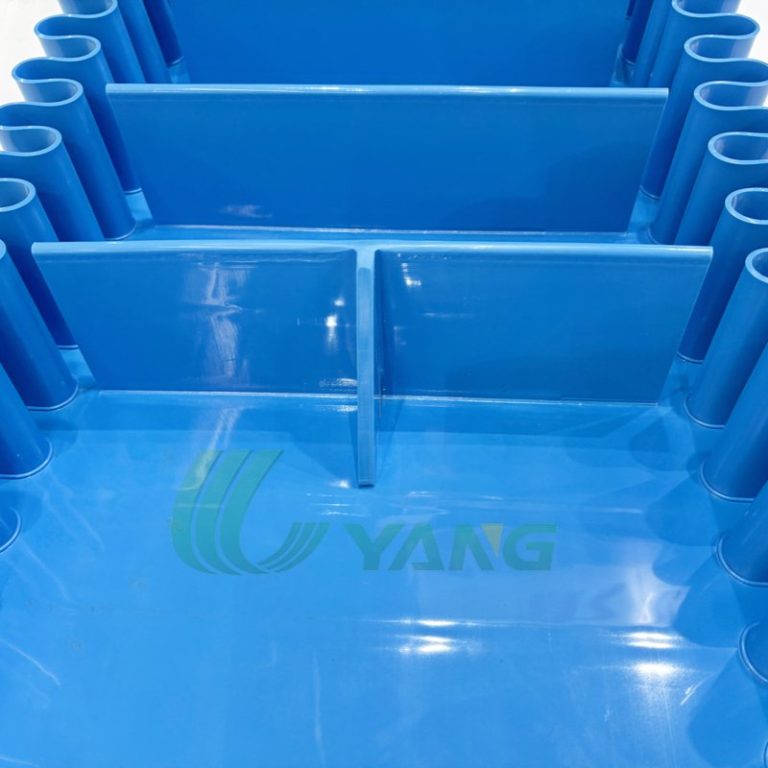

Uyang Belting could provide many types of homogeneous belts, e we could provide the sidewall, guide, cleats which could add on the homogeneous belt to improve the effectiveness of the conveyor, and protect the goods from falling, and separate the goods to keep hygienic; We use advanced high-frequency welding technology to ensure a durable, hygienic bond for extended service life and reduced maintenance. On-site installation services are available upon request.
Uyang Belting could provide many types of homogeneous belts, e we could provide the sidewall, guide, cleats which could add on the homogeneous belt to improve the effectiveness of the conveyor, and protect the goods from falling, and separate the goods to keep hygienic; We use advanced high-frequency welding technology to ensure a durable, hygienic bond for extended service life and reduced maintenance. On-site installation services are available upon request.

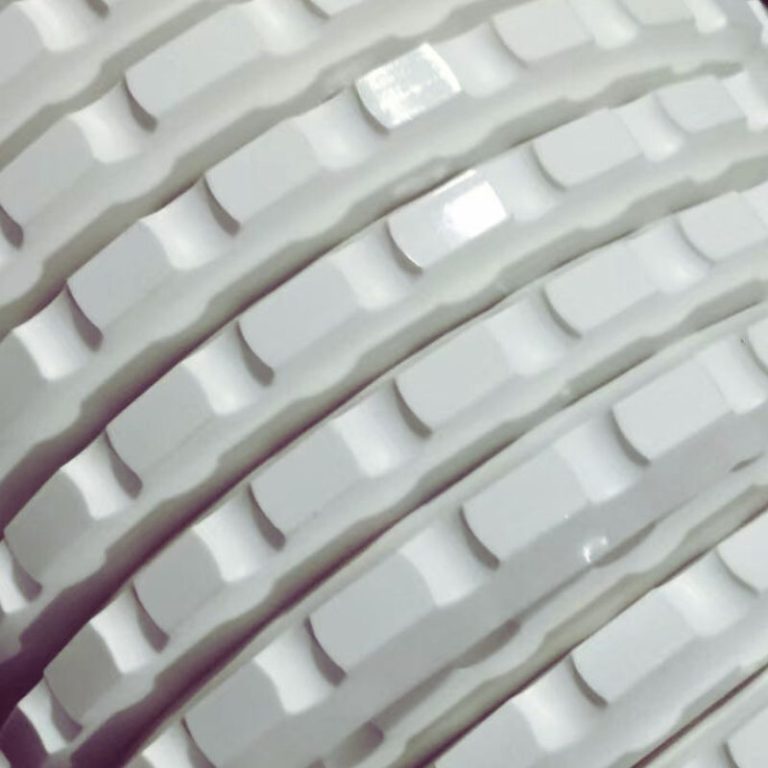

Objetivo de adicionar guia na parte inferior do cinto:
Recurso -chave:
Rastreamento de correia aprimorado
Guide strips help the belt stay aligned throughout the operation, minimizing the risk of side drift or misalignment-especially important in systems with frequent starts, stops, or directional changes.
Vida útil prolongada da correia
Mantendo a correia centrada e reduzindo a tensão lateral, as tiras de guia impedem o desgaste da borda e os danos na superfície, ajudando a prolongar a vida útil geral da correia.
Estabilidade aprimorada do sistema
Fácil de limpar e manter
A stable, well-aligned belt is key to a reliable conveying system-and that’s where guide strips come in. Designed to prevent misalignment and ensure smooth tracking, Uyang Belting guide strips are the quiet heroes behind efficient belt performance.
Whether you’re running a compact conveyor or a large-scale production line, the right guide strip setup ensures your easy-clean belt performs at its best-every shift, every day.
Rastreamento preciso
Guide strips help the belt stay centered during operation, reducing the risk of side slip or edge wear-especially important in high-speed or washdown environments.
Design de ajuste personalizado
We offer guide strips in various shapes and sizes to suit your belt width, system layout, e tracking needs. Whether you need a single center strip or multiple side guides, we’ll match the design to your setup.
Materiais amigáveis à higiene
Uyang Belting guide strips are easy to clean, resistant to moisture and chemicals, e compliant with industry hygiene standards.
Desgaste baixo, vida longa
With a smooth surface finish and tough construction, the guide strips are designed to minimize friction, reduce belt wear, e keep your system running longer with less downtime.
Parâmetros de guia
| Código | Cor | Especificação | Minimum diâmetro do rolo with teeth | Minimum diâmetro do rolo without teeth | Dureza | Com dentes | |
| B | H | ||||||
| K5 | Azul {{url_placeholder_0}} | 5 | 3 | 25 | 30 | 70A | Disponível |
| K6 | Azul {{url_placeholder_0}} | 6 | 4 | 30 | 35 | 70A | Disponível |
| K8 | Azul {{url_placeholder_0}} | 8 | 5 | 35 | 45 | 70A | Disponível |
| K10 | Azul {{url_placeholder_0}} | 10 | 6 | 45 | 50 | 70A | Disponível |
| K13 | Azul {{url_placeholder_0}} | 13 | 8 | 60 | 70 | 70A | Disponível |
| K17 | Azul {{url_placeholder_0}} | 17 | 11 | 90 | 100 | 70A | Disponível |
| TK10 | Azul {{url_placeholder_0}} | 10 | 10 | 80 | 70A | ||
Note: The minimum diâmetro do rolo is the front parameter of the belt, e the C-guide can be customized
De acordo com os requisitos do cliente
Cronogramas de entrega confiáveis e suporte de armazenamento.
Preços competitivos para maximizar o valor geral.
Diversas opções para atender a todos os segmentos de mercado.
Suporte MOQ flexível com todos os tipos de mercadorias;
Personalização personalizada do logotipo nos produtos
Forneça suporte técnico on -line para todos os processos de uso e instalação do produto
Primeira resposta rápida a todas as perguntas e perguntas
Forneça imagens de qualidade, vídeo para aprimorar a receita de vendas
Produção e envio eficientes dentro de 15 dias mais rápidos.
Geralmente são de 10 a 15 dias, se a estação de pico, será de 15 a 20 dias de segurança que recebe o depósito
.
.
.
.
.
.
.
.
