UYANG BELTING could provide a wide of easy-to-clean homogeneous belts with high hygienic levels, which could be suitable for many food processing applications. The homogeneous belts have become popular because their sealed edges prevent the ingress of microbes and their urethane construction is easily cleaned and assists in the reduction of in-process bacteria growth. meanwhile, we could provide gear( wheel), sidewall, guide, and cleat, and We can fit these on-site if required.
UYANG BELTING could provide a wide of easy-to-clean homogeneous belts with high hygienic levels, which could be suitable for many food processing applications. The homogeneous belts have become popular because their sealed edges prevent the ingress of microbes and their urethane construction is easily cleaned and assists in the reduction of in-process bacteria growth. meanwhile, we could provide gear( wheel), sidewall, guide, and cleat, and We can fit these on-site if required.
Whether in food processing, packaging lines, or industrial automation, the performance of the wheels directly impacts the efficiency and reliability of Easy-to-Clean Homogeneous belts. Proper selection and regular maintenance maximize system performance.

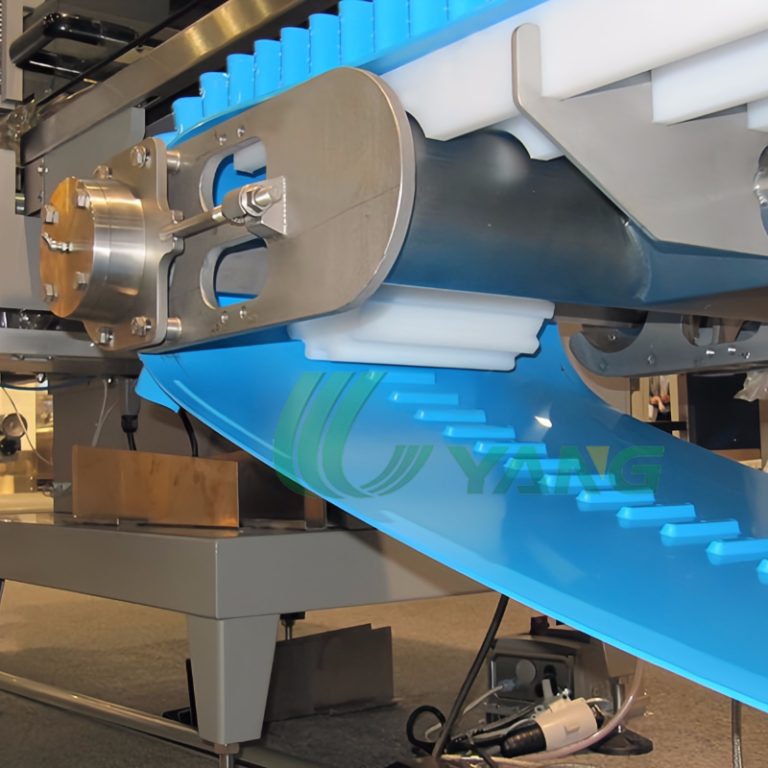

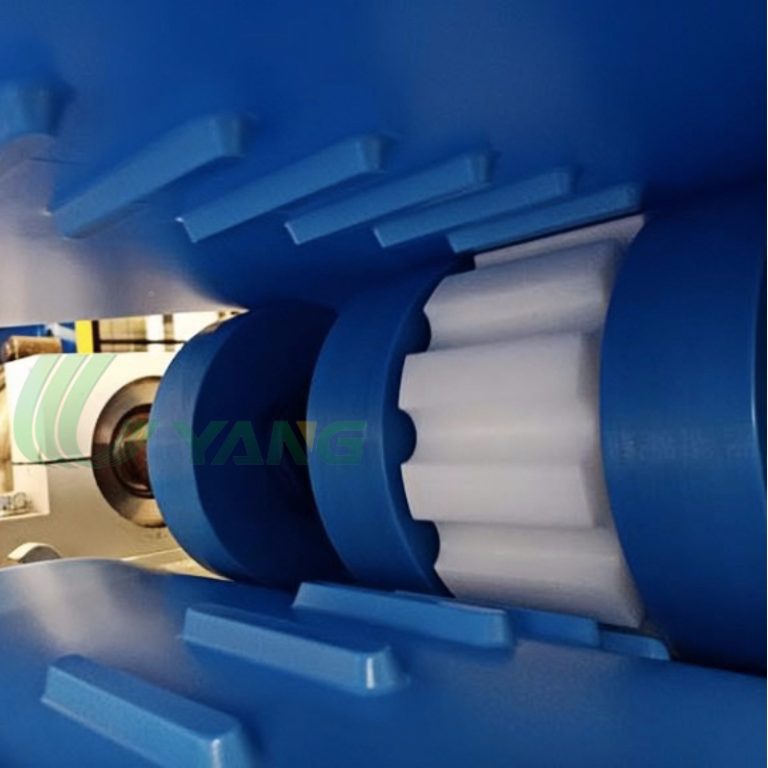

The meshing transmission design of the belt series is unique. It mainly uses the parallel extrusion teeth on the surface of the conveyor belt and the pulley groove to transmit power. The design further enhances the reliability and stability of the transmission; The operation of the unique guide mechanism reduces the tension and deviation of the conveyor belt, facilitates maintenance, greatly saves the customer’s operating space, and prolongs the service life of the conveyor belt.
| Category | Model | Number | Outsidediameter
(mm) |
thickness
(mm) |
Material | BoreShape | Bore Specification | Schematic |
| Actionwheel | C25-8E | 8 | 63.6 | 30 | POM/PA/PE | Square hole | 40mm |  |
| Circular hole | 25-35mm | |||||||
| Actionwheel | C25-10E | 10 | 79.5 | 30 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm | |||||||
| Actionwheel | C25-12E | 12 | 95.4 | 30 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm | |||||||
| Actionwheel | C25-14E | 14 | 113.3 | 30 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm |
| Category | Model | Number | Outsidediameter
(mm) |
thickness(mm) | Material | BoreShape | Bore Specification | Schematic |
| Actionwheel | C50-8E | 8 | 126.4 | 30 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm | |||||||
| Actionwheel | C50-10E | 10 | 158 | 30 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm | |||||||
| Actionwheel | C50-12E | 12 | 189.6 | 30 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm |
| Category | Model | Number | Outsidediameter
(mm) |
thickness(mm) | Material | BoreShape | Bore
Specification |
Schematic |
| Action wheel | C40-8E | 8 | 101.15 | 90 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm | |||||||
| Action wheel | C40-10E | 10 | 126.43 | 90 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm | |||||||
| Action wheel | C40-12E | 12 | 151.72 | 90 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm | |||||||
| Driven wheel | D50-8E | 8 | 101.15 | 150 | POM/PA/PE | Square hole | 40mm |  |
| Circular hole | 25-35mm | |||||||
| Driven wheel | D50-10E | 10 | 126.43 | 150 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm | |||||||
| Driven wheel | D50-12E | 12 | 151.72 | 150 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm |
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
